Recessed Ceiling Light Motion Detector AC 110 - 220V PIR Infrared Sensor

I'm Online Chat Now

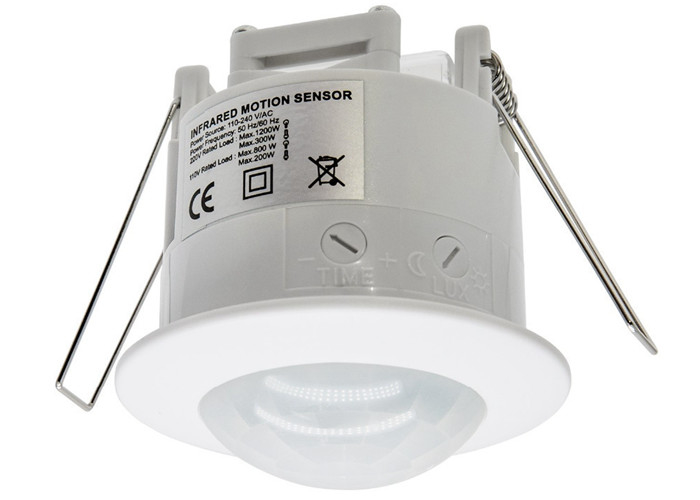

Recessed Ceiling Light Motion Detector AC 110 - 220V PIR Infrared Sensor

Recessed Ceiling Light Motion Detector AC 110 - 220V PIR Infrared Sensor
Recessed Ceiling Light Motion Detector AC 110 - 220V PIR Infrared Sensor

Large Image :  Recessed Ceiling Light Motion Detector AC 110 - 220V PIR Infrared Sensor

Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-GY0015
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: USD 2.5/Piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000 pieces / day

Recessed Ceiling Light Motion Detector AC 110 - 220V PIR Infrared Sensor

Description
Input Voltage: AC110-220V Detector Distance: 8m Max(<24°C)
Time Delay: 5 Sec~6 Min Adjustable Rated Load: 1200W (incandescent Lamp)/ 300W (energy-saving Lamp)
High Light:

Recessed Ceiling Light Motion Detector

,

220V Ceiling Light Motion Detector

,

Recessed PIR Infrared Sensor

Recessed Ceiling Motion Sensor Detector Light Switch PIR Infrared Inductance Sensor



Product Specifications:

Power Source: 220 -240V AC

Detection Range: 360°

Working Temperature: -20 - 40 deg C,

Working Humidity: <93%RH

Ambient Light: 3-2000LUX (adjustable)

Time-Delay: min: 10sec±3sec - Max: 7min±2min

Installation Height: 2.2-4m

Power Consumption: 0.45W (work), 0.1W (static)

Rated Load: 1200W (incandescent lamp)/ 300W (energy-saving lamp)

Detection Motion Speed: 0.6 ~1.5m/s,

detection distance: 6m max (24 deg C)

Diameter 114mm, depth 52mm



Recessed Ceiling Light Motion Detector AC 110 - 220V PIR Infrared Sensor 0

Recessed Ceiling Light Motion Detector AC 110 - 220V PIR Infrared Sensor 1
