Product Details:
|
| Input Voltage: | DC12V-24V | Input Current: | 5000mA Max |
|---|---|---|---|
| Output Voltage: | DC12V-24V | Output Current: | 5000mA Max |
| Detection Range: | 1-3 Meters | Detection Angle: | 120° |
| Response Time: | 0.5 Second | Product Size: | 36x12mm |
| Installation Method: | Built In And Welding | Incoterm: | FOB Or EXW |
| High Light: | Built In 5000mA PIR Sensor Switch,5000mA PIR Sensor Switch,LED 5000mA PIR Sensor Switch |
||

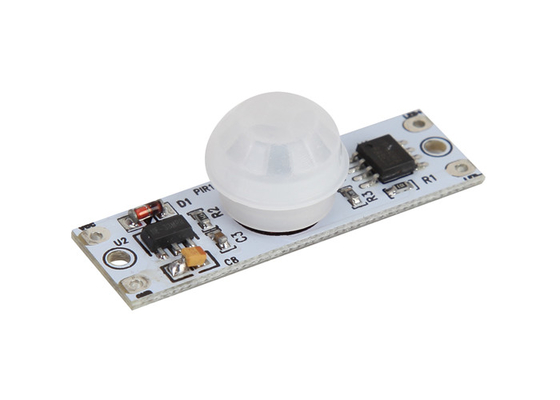

Built in PIR Sensor Switch, Human Motion Detector Switch for LED Stripe Light
Product Application:
It can turn on the LED lighting automatically when human approaching is detected in detection range.
30 seconds later it will turn off LED lighting automatically after human leaves or go out of detection range.
This product is used to make sensoring LED stripe light, LED furniture light and so on.
Product Description:
| Product Model No.: MR-HY3612 | ||||
| Input: DC12-24V | ||||
| Output: DC12-24V max output current: 5A | ||||
| Power load: 60W at DC12V, 120W at DC24V | ||||
| Detection range: 1~3 meters | ||||
| Detection angle: 90° | ||||
| Response time: 0.5 second | ||||
| Product Size: 36x12mm | ||||
| Installation method: built in and weld |
Note:
Please note the MOQ (minimum order quantity) is 200 pieces, either we don't accept individual order.
When you need to place order, please make sure it is business order and buy 200 pieces at least.
Thanks a lot.
