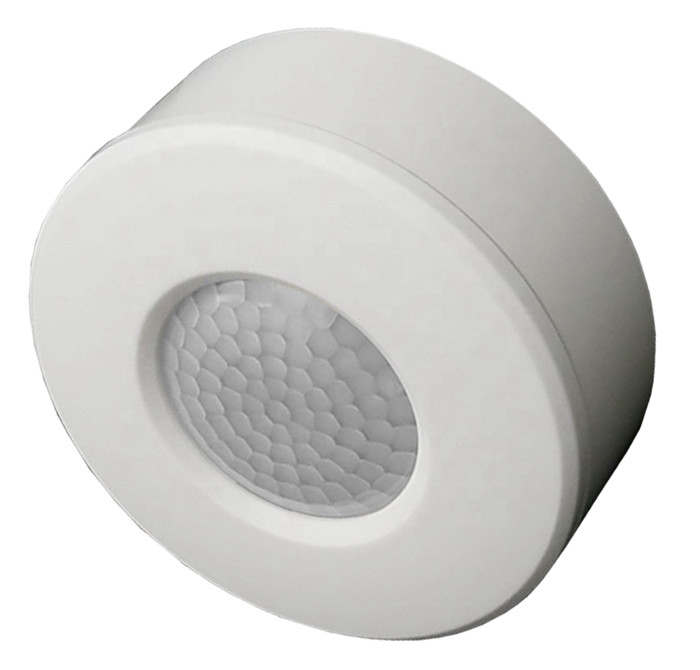

Human Body Movement Detector Light Switch PIR Surface Mounted For Wardrobe

I'm Online Chat Now

Human Body Movement Detector Light Switch PIR Surface Mounted For Wardrobe

Human Body Movement Detector Light Switch PIR Surface Mounted For Wardrobe
Human Body Movement Detector Light Switch PIR Surface Mounted For Wardrobe

Large Image :  Human Body Movement Detector Light Switch PIR Surface Mounted For Wardrobe

Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-GYHW1138
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: USD 3.5 per piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000 pieces / day

Human Body Movement Detector Light Switch PIR Surface Mounted For Wardrobe

Description
Input Voltage: AC220-240V 50Hz Detection Range: 360 Degree
Rated Power: 800W(incandecent Lamp) 400W(LED Or Energysaving Lamp) Time Delay Setting: 10 Sec-7 Min, Adjustable
Ambient Light: <10-2000Lux, Adjustable Installation Height: 2.2-4M
High Light:

360 Degree Movement Detector Light Switch

,

PIR Movement Detector Light Switch

,

Surface Mounted Sensor Switch For Wardrobe

Surface Mounted Human Body Movement Detector PIR Sensor For LED Indoor Lighting



Functional Introduction:

This microwave radar sensor can identify day and night: The consumer can adjust work ambient light. It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light less than 10LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.

Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest.

Time-Delay is adjustable. It can be set according to the consumer's desire. The minimum time is 10sec±3sec. The maximum is 7min±2min



Installation:

Switch off the power.

Turn clockwise the bottom-stand and take off it. The power wire cross the hole in the middle of bottom-stand.

The bottom-stand is fixed on the selected position with inflated screw.

Connect the power and the load into the connection-wire column of the sensor according to connection-wire diagram.

The sensor aimed at the mouth of bottom-stand and turned anti-clockwise.
