Product Details:
|
| Input Voltage: | AC90-265V | Outpur Current: | 100-240mA |
|---|---|---|---|
| Output Power: | 6-20W | Installation Method: | Built In |
| High Light: | Induction PIR Sensor Switch,Infrared PIR Sensor Switch,T8 Constant Current LED Driver |
||

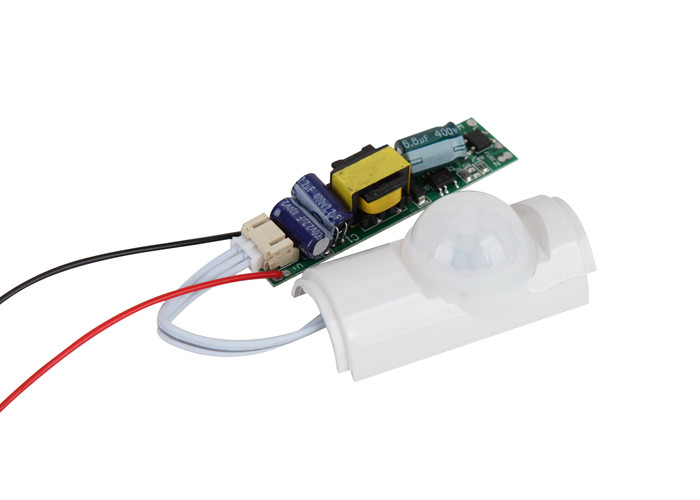

Mini PIR Infrared Induction Driver Constant Current for LED T8 Tube
Product Specification:
Product Name |
Led PIR sensor driver |
| Product Model | MR-DGHY2022 |
| Voltage Input | AC90~265V |
| Output Power | 6-20W |
| Output Voltage | DC 30-80V |
| Output Current | 100-240mA |
| Power Factor | PF>0.9 |
| Working Temperature | -25 ℃ ~ 75 ℃ |
| Dimension(L*W*H) | 70*16.5*10.5mm |
| Induction Angle | 120 ° |
| Sensing Distance | 5-8 meters |
| Applicable Lamps | LED T8 tube |
| Sensor Type | Passive infra red |
Product Features:
1. High performance based on high power efficiency and high PF.
2. Automatically on and off when people movement is detected within sensoring distance.
3. Compable with LED T8 tube light, widely use in vehicle parking building.
4. Mini size to save inner space of LED tube.
5. Multi protection circuit design, over load protection, over voltage protection, short circuit protection.
