Home ProductsPIR Sensor Switch

100 - 240mA Infrared LED Driver Induction Constant Current For LED T8 Tube

I'm Online Chat Now

100 - 240mA Infrared LED Driver Induction Constant Current For LED T8 Tube

100 - 240mA Infrared LED Driver Induction Constant Current For LED T8 Tube
100 - 240mA Infrared LED Driver Induction Constant Current For LED T8 Tube

Large Image :  100 - 240mA Infrared LED Driver Induction Constant Current For LED T8 Tube

Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-DGHY2012
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: USD 0.8-1.2 per piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 10,000 pieces / day

100 - 240mA Infrared LED Driver Induction Constant Current For LED T8 Tube

Description
Input Voltage: AC90-265V Outpur Current: 100-240mA
Output Power: 6-20W Installation Method: Built In
High Light:

240mA Infrared LED Driver

,

Induction Infrared LED Driver

,

Induction 240mA Infrared LED Driver

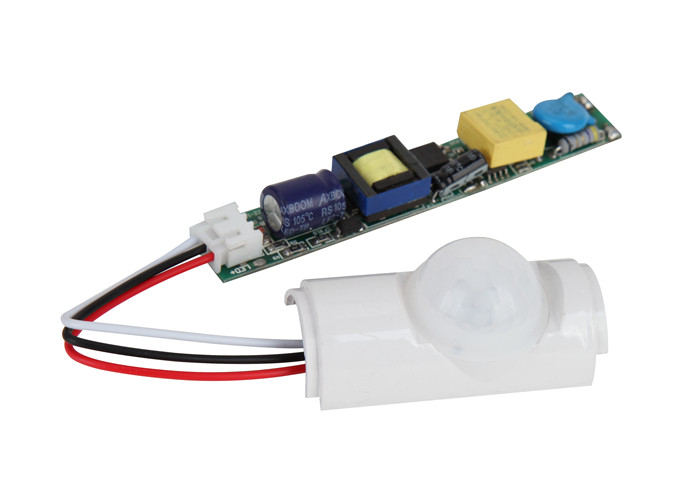

LED Human Body Infrared Induction Driver Constant Current for LED T8 Tube



Product Specification:

Product Name Led induction driver
Product Model MR-DGHY2012
Voltage Input AC90~265V
Output Power 6-20W
Output Voltage DC 30-80V
Output Current 100-240mA
Power Factor PF>0.9
Working Temperature -25 ℃ ~ 75 ℃
Dimension(L*W*H) 108*16.5*10.5mm
Induction Angle 120 °
Sensing Distance 5-8 meters
Applicable Lamps LED T8 tube
Sensor Type Passive infra red



Product Features:

1. Fast start, high efficiency, stable work and small size.
2. Multiple protection, LED open circuit, short circuit, over temperature protection, etc.
3. When the input voltage changes, the microwave output power is stable.
4. High power factor, IC comes with PFC, full load greater than 0.9 at rated power
5. The constant current output is stable and there is no intermittent.
6. Small size, can be directly installed in the T8 tube.
7. Highly sensitive human body infrared sensing, sensing distance 5-8M.
8. Full light-off mode: People come 100% bright, and people turn off after 40 seconds of standby lighting time (15-120 seconds adjustable).
9. It can save more than 90% energy compared with traditional lamps in long-term lighting places such as basement parking lots.
