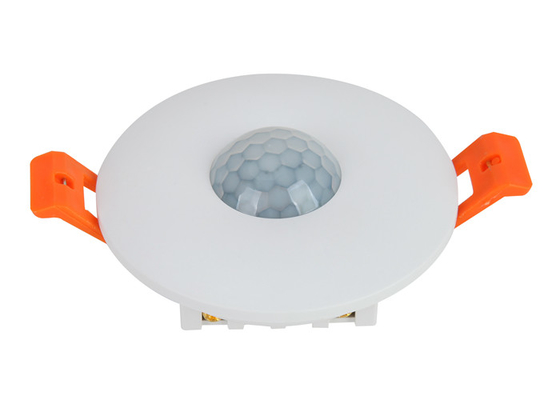

AC 220V PIR Sensor Switch Motion Recessed Slim For LED Ceiling Light

I'm Online Chat Now

AC 220V PIR Sensor Switch Motion Recessed Slim For LED Ceiling Light

AC 220V PIR Sensor Switch Motion Recessed Slim For LED Ceiling Light
AC 220V PIR Sensor Switch Motion Recessed Slim For LED Ceiling Light

Large Image :  AC 220V PIR Sensor Switch Motion Recessed Slim For LED Ceiling Light

Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-HWQR8636
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: USD 3.5 per piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 10,000 pieces / day

AC 220V PIR Sensor Switch Motion Recessed Slim For LED Ceiling Light

Description
Model: MR-HWQR8636 Input Voltage: AC100-265V
Max Load Power: ≤200W Angel Of Induction: 120°
Time Delay: 15S, 45S, 5Min, 15Min Photosensitive Set: 2Lux / 10Lux / 30Lux /24Hour
Install Height: 4 Meters Size: φ86*H36mm
Hole Size: 70-80mm
High Light:

Recessed Slim PIR Sensor Switch

,

Slim PIR Sensor Switch

,

AC 220V Slim PIR Sensor Switch

AC220V PIR Motion Sensor Recessed Type Slim Design for LED Ceiling Light, Down Light



Product Description:



The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection area. It can identify day and night automatically and control LED lighting accordingly, which is easy to install and used widely.





FUNCTION:

  1. Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern, please refer to the testing pattern.
  2. Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.

Installation:



Please move the upper cover with anti-clockwise whirl as per the diagram on the right.

1. Connect the power and the load according to the connection-wire diagram.

2. Fix the bottom on the selected position with the inflated screw.

3. Install back the upper cover on the sensor, then you could switch on the power and test it.
