Product Details:
|
Input Voltage: | AC85-265V 50/60Hz | Load Power: | ≤ 200 Watt |
---|---|---|---|
Sensoring Angle: | 110° | Control Lasting Time: | 40-50 Seconds |
Photocell Set: | ≤10 Lux Sunlight | Detection Distance: | 2-6 Meters |
Installation Height: | ≤ 3.5 Meters | IP Grade: | IP22 |
Finish: | Gray | ||
High Light: | 50HZ Motion Sensor Switches,Polycarbonate Motion Sensor Switches,IP22 Motion Sensor Flood Light Switch |

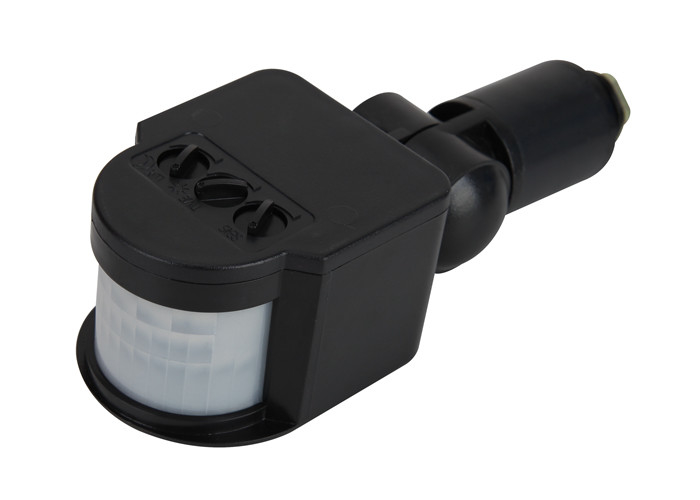

IR Sensor Switch Component for LED Flood Light, LED Street Light
Application:
This motion sensor switch is used for LED flood light, LED down light and other LED lighting products.
With the sensor switch, LED flood light will be powered on automatically when people approach the sensor in 2 to 6 meters.
40 seconds later after people leaves, the LED lighting will be powered off without manual controlling.
These kinds of lighting product are widely installed in park, garage, garden and other public areas, which can save electric power largely.
Product Parameters:
Product Model No.: MR-HW07B | ||||
Input: AC85-265V 50/60Hz | ||||
Power load: ≤200W | ||||
Detection range: 2~6meters | ||||
Detection angle: 110° | ||||
Response time: 0.5 second | ||||
Product color: Black | ||||
Installation method: outer screwed | ||||
Hole drilling size: 20mm | ||||
Material: Polycarbonate plastic | ||||
Application: LED ceiling light, LED down light |
Feasures:
Compact size
Sensitive probe distance upto 6 meters.
Easy assembly
Compatible with many outdoor LED lightings.
Note:
Please note the MOQ (minimum order quantity) is 100 pieces, either we don't accept individual order.
When you need to place order, please make sure it is business order and buy 100 pieces at least.
Thanks a lot.
