Product Details:
|
| Input Voltage: | DC12V / DC24V | Output Voltage: | DC12V / DC24V |
|---|---|---|---|
| Usage: | Motion Sensor | Sensor Distance: | 5-8 Meters |
| Delay Time: | 1-10min (adjustable) | ||
| High Light: | 12V Motion Sensor Switches,Adjustable Motion Sensor Switches,LED PIR Sensor Module |
||

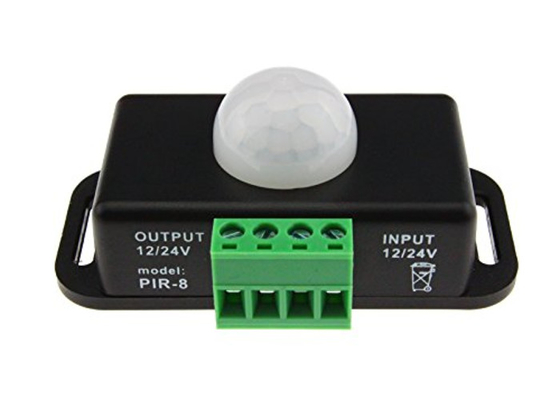

Mini PIR Motion Sensor Switch 12V 24V Adjustable LED Sensor Module
Product Specification:
Working temperature: -20-60°C
Supply voltage: DC12/24V
Output voltage: DC12/24V
Output: 1 channel
Sensing distance: 5 ~ 8 M.
Ham should angle: 60 degrees.
Output current: <6A
Delay time: 1-10min (adjustable)
External dimension: L76 Χ W45 Χ H34 mm
Packing size: L104 Χ W64 Χ H41 mm
Net weight: 32g
Gross weight: 50g
Application Description:
The human body is an infrared detection sensor switch controller; the use of infrared detection controls the load of the switch. Users according to actual needs, the human body sensors installed in the appropriate environment.
