Product Details:
|
| Input Voltage: | AC 85-265V 50Hz | Output Voltage: | DC 12V |
|---|---|---|---|
| Output Current: | 8000 MA Max | Load Power: | 100 Watt |
| Size: | 200 X 59 X 20 Mm | Input Plug: | EU Or US Plug |
| Output Plug: | Dupont Connector | TC: | <65℃ |
| Ambient Humidity: | 0~95% Non-Condensation | ||
| High Light: | 100W 12V Constant Voltage LED Driver,White 12V Constant Voltage LED Driver,100W Constant Voltage LED Power Supply |
||

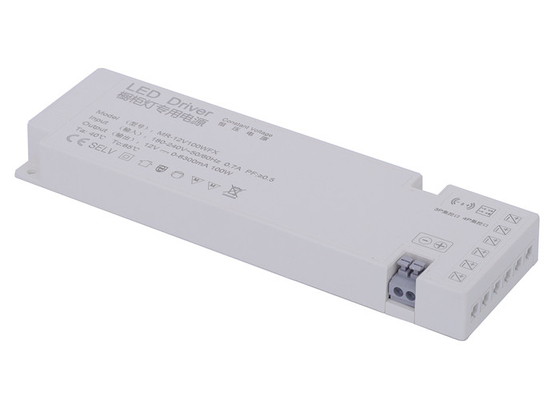

DC12V 8A 100W LED Power Supply Constant Voltage LED Driver for Under Carbinet Light, LED Tape Light, LED Strip Light, LED Channel Light
Product Application:
DC 12Volt 8000mA 100Watt LED power supply driver.
This product is best partner for under cabinet light, LED channel light, LED tape light, LED strip light, LED rigid strips and other indoor lightings.
It can also work with our LED sensors to control LED lighting on/off automatically.
Input: EU or US plug according to customer requirement.
Output: 6 dupont constant voltage output ports to connect LED lightings or sensor switches, 2 dupont (3 pin and 4 pin) output ports to connect LED sensor switches, 1 big current output port.
Short circuit& over voltage & over temperature & over load protection.
Product Description:
| Product Model No.: MR-12V100W | ||||
| Input: AC85-265V 50/60Hz | ||||
| Output: DC12V max 8000mA | ||||
| Power Load: 100 Watt | ||||
| Response time: 0.5 second | ||||
| Product color: White / Black | ||||
| Installation method: series connection between AC power and LED lighting | ||||
| Product Size: 200 x 59 x 20 mm | ||||
| Material: Polycarbonate plastic, fire retardent | ||||
| Cable length: power input cable is 59 inches (150cm), output cable is 7 inches (18cm) |
Feasures:
Constant voltage output to ensure long lifespan to your LED lightings.
Compact size, space saving.
Dupont connector makes installation easy and time-saving.
High power efficiency, less power consumption.
Package Content:
100 Watt LED driver x1
Input wire with US plug x1
Note:
Please note the MOQ (minimum order quantity) is 100 pieces, either we don't accept individual order.
When you need to place order, please make sure it is business order and buy 100 pieces at least.
Thanks a lot.
