Product Details:
|
| Input Voltage: | AC180-265V | Output Voltage: | DC12V |
|---|---|---|---|
| Output Current: | 2000mA | Power Factor: | >0.5 |
| Product Size: | 117 X 54 X 18 Mm | ||
| High Light: | DC12V LED Constant Voltage Driver,24W LED Constant Voltage Driver,RoHS Under Cabinet LED Driver |
||

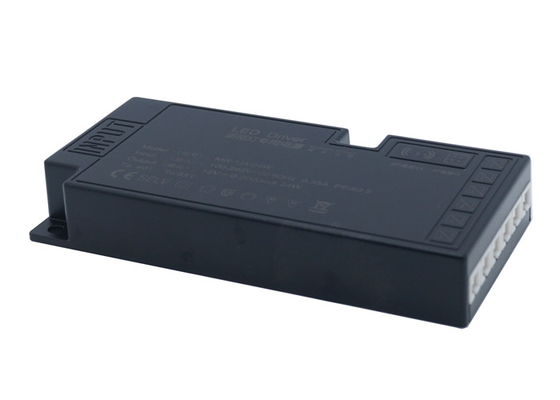

LED Constant Voltage Driver DC12V 24W Cabinet Light LED Power Supply
Product Specifications:
| Item No. | MR-12V24WFX |
| Rated Load | 24W |
| Output Voltage | DC 12V |
| Output Current | 2A |
| Input Voltage | 180-240VAC 50/60Hz |
| Conversion Efficiency | ≥90% |
| Material | Plastic |
| Power Factor | PF≥0.5 |
| Dimension | 117 x 54 x 18 mm |
| Working temperature | -30~+40°C |
| Temperature Rise | ≤30°C |
| Output Type | Constant Voltage |
| Storage temperature | -30~+100°C |
| IP code | IP44 |
| Warranty | 3 years |
| Certificate | CE, ROHS |
| Application | Led strip light / solar streetlight / Emergency light etc. |
| Packing | Standard export packing |
| Delivery | Samples: 3-7 days. Orders more than 5000 unit in 7-15days |
| Payment Terms | By T.T, Western Union |
Product Features:
