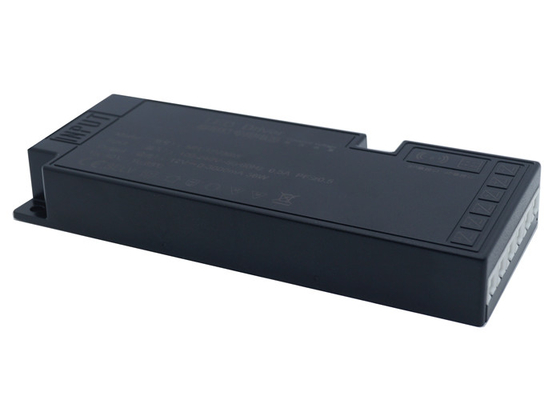

36W DC 12V Constant Voltage LED Driver For Furniture Light Wardrobe Lamp

I'm Online Chat Now

36W DC 12V Constant Voltage LED Driver For Furniture Light Wardrobe Lamp

36W DC 12V Constant Voltage LED Driver For Furniture Light Wardrobe Lamp
36W DC 12V Constant Voltage LED Driver For Furniture Light Wardrobe Lamp

Large Image :  36W DC 12V Constant Voltage LED Driver For Furniture Light Wardrobe Lamp

Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-12V36WFX
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: USD 3.5 per piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000 pieces / day

36W DC 12V Constant Voltage LED Driver For Furniture Light Wardrobe Lamp

Description
Input Voltage: AC180-265V Output Voltage: DC12V-24V
Output Current: 3000mA Rated Power: 36W
Power Factor: >0.5 Power Efficiency: >90%
Product Size: 137 X 54 X 18 Mm Certificate: CE, RoHS
High Light:

DC 12V Constant Voltage LED Driver

,

RoHS 12V Constant Voltage LED Driver

,

Furniture Light 36W LED Driver



36W LED Driver DC12V Constant Voltage LED Power Supply for LED Furniture Light Wardrobe Lamp



Product Feasures:

1. Easy installation, easy connection
2. 180-240V AC input
3. 12V constant voltage output, suitable for LED strip
4. Slim design, perfect for furniture.



Produce Parameters:

OUTPUT DC VOLTAGE(V) 12
  RATED CURRENT (A ) 3A
  VOLTAGE RANGE 12±5%
  RATED POWER(W) 36
  RIPPLE&NOISE(mV ) 500
  LOAD REGULATION ±5%
INPUT VOLTAGE RANGE(V) AC180~265V
  FRE. RANGE(HZ) 47~63
  AC CURRENT(A) 0.8~0.2
  EFFICIENCY(Type) >88%
  POWER FACTOR 0.5
  T.H.D --
  INRUSH CURRENT(A) 30
  LEAKAGE CURRENT (mA ) 0.5mA /240VAC
PROTECTION OVERLOAD automatically recover after fault condition is removed
  SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
  O.T.P 130℃±10℃,
  OVER VOLTAGE Shut down O/P voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP.& HUMIDITY -30℃~+50℃,20-90%RH
  STORAGE TEMP.& HUMIDITY -40℃~+80℃,10-95%RH
  DROP TEST 1 Carton, 36 inches, 6 face, 8 corners
SAFETY & EMC SAFETY STANDARDS EN61347-1,EN61347-2-13,
  EMI CONDUCTION & RADIATION Compliance to EN55015
  HARMONIC CURRENT Compliance to EN61000-3-2 CLASS C
  MTBF 30000Hr,at 25℃ (MIL-STD-217F)
