Product Details:
|
| Input Voltage: | AC110V / AC220V | Material: | Polymer |
|---|---|---|---|
| Product Size: | 90x41x38mm | Detection Range: | 360° 2-10m(dia.),adjustable |
| HF System: | 5.8GHz | ||
| High Light: | AC 220V Motion Sensor Switch,Ultrasonic 220V Motion Sensor Switch |
||

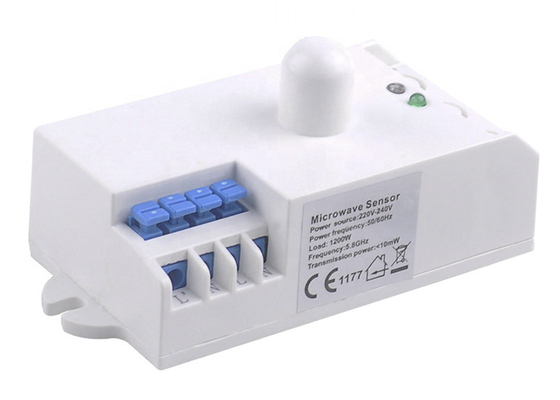

AC110V 220v Rader Detector 5.8GHz Ultrasonic Microwave Motion Sensor Doppler Radar Sensor Switch
Product Paramenters
The sensor is an active motion detector, it emits high-frequency electro-magnetic wave ( 5.8GHz) and receives their echo. The sensor detects the change in echo from even the slightest movement in its detection zone. A microprocessor then triggers the "switch light ON" command. Detection is possible through doors, panes of glass or thin walls
Important: persons or objects moving towards the sensor are detected best!
Product Specifications:
| Model No. | MR-RD305 |
| Power Sourcing | 220V/AC-240V/AC 110V |
| Detection Range | 360° |
| Detection Distance | 1-8m (radius) adjustable |
| HF System | 5.8GHz CW radar, ISM band |
| Ambient Light | 2-2000LUX (Adjustable) |
| Time setting | 8sec-12min |
| Transmission Power | <0.2mW |
| Power Consumption | 0.9W |
| Installation sit | Indoors ,ceiling mounting |
| Rated Load | 1200W (220-240VAC) |
