Human Body Motion Mini Light Sensor Switch 5.8GHz 1200W 300W For LED Lights

I'm Online Chat Now

Human Body Motion Mini Light Sensor Switch 5.8GHz 1200W 300W For LED Lights

Human Body Motion Mini Light Sensor Switch 5.8GHz 1200W 300W For LED Lights
Human Body Motion Mini Light Sensor Switch 5.8GHz 1200W 300W For LED Lights

Large Image :  Human Body Motion Mini Light Sensor Switch 5.8GHz 1200W 300W For LED Lights

Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-LD701
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: USD 4.5 per piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000 pieces / day

Human Body Motion Mini Light Sensor Switch 5.8GHz 1200W 300W For LED Lights

Description
Input Voltage: AC220-240V Loaded Power: 1200W (incandescent Lamp), 300W (energy-saving Lamp, LED Light)
HF System: 5.8GHz Time Delay: 10sec-12min (adjustable)
Installation Height: Wall 1.5-3.5m, Ceiling: Ceiling: 2-8m
High Light:

1200W Mini Light Sensor Switch

,

Human Motion 1200W Mini Light Sensor Switch

,

LED 1200W Mini Light Sensor Switch

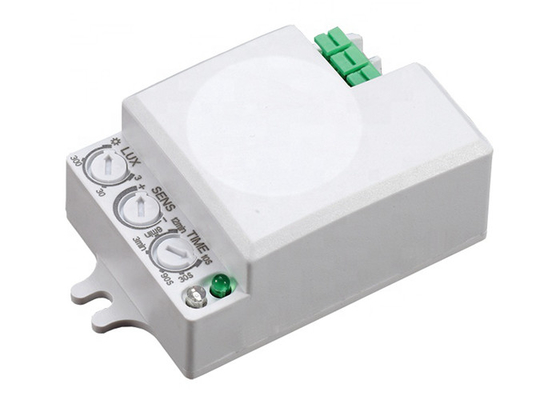

Mini Inside Fixture Mounting Human Body Sensor Switch LED Switch Microwave Motion Sensor





Product Description:

The product is a new saving-energy switch; it adopts microwave sensor mould withhigh-frequency electro-magnetic wave (5.8GHz), integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its using is very wide. Detection is possible through doors, panes of glass or thin walls.



Functions:

1. Can identify day and night: It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 5LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.

2. SENS adjustable: It can be adjusted according to using location; low sensitivity with 2m for detection distance; High sensitivity with 16m, it fits for large room.

3. Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest.

4. Time–Delay is adjustable. It can be set according to the consumer’s desire. The minimum time is 6sec±2sec. The maximum is 12min±1min.
