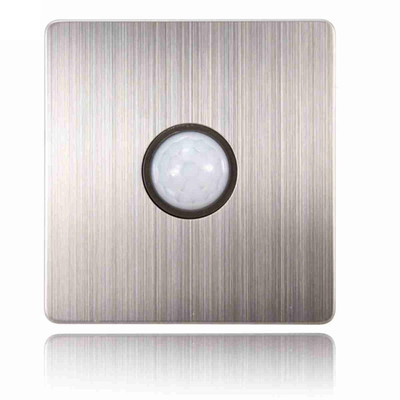

Human Body PIR Motion Detector Sensors Switch IR Infrared AC 110 - 240V

I'm Online Chat Now

Human Body PIR Motion Detector Sensors Switch IR Infrared AC 110 - 240V

Human Body PIR Motion Detector Sensors Switch IR Infrared AC 110 - 240V
Human Body PIR Motion Detector Sensors Switch IR Infrared AC 110 - 240V

Large Image :  Human Body PIR Motion Detector Sensors Switch IR Infrared AC 110 - 240V

Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-GYRT2012
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: USD 8.0-12 per piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000 pieces / day

Human Body PIR Motion Detector Sensors Switch IR Infrared AC 110 - 240V

Description
Input Voltage: AC110-240V 50/60Hz Load Power: LED≤40W Energy Saving≤80 Candescent≤200W Fan≤50W
Delay Time: 15-300 Seconds Adjustable Ambient Lux: 5 LUX~50000 LUX
Detection Distance: 6-10 Meters Sensor Angle: 110-140 Degree
Material: Stainless Steel And PC Plastic Product Size: 86*86*35mm
High Light:

PIR Motion Detector Sensors

,

IR Infrared Motion Detector Sensors

,

IR Infrared Human Body Sensor Switch

IR Infrared PIR Motion Human Body Sensor Switch Detector Intelligent Switch



Product Feasures:

1.When moving into the sensing range,  light will turn on automatically.
   when they leave,  light will keep on lighting for 20 seconds and then shut down automatically.
2. Super saving electricity, power consumption 0.08 degrees per year
3. Large power, impedance biggest load can reach up to 200W
4. Non-contact, simple installationsingle wire systemjust like ordinary switch connection
5. For protection, strong anti-jamming capacity, more safe and reliable
6. Application: Corridor, basement, warehouse, garage, and other indoor places of automatic lighting,
    exhaust fan convulsions and other automatic control electrical, can be used for security purposes at the same time.



Specification:
1. Working power:AC100V~250V 50/60HZ
2. Load power:LED≤40W Energy saving≤80 candescent≤200W Fan≤50W
3. Standby power:0.0088W
4. Delay time:15~300second(About 20 seconds by default)
5. Illumination:5LUX~50000LUX
6. Sensor distance:6~10m
7. Sensor angle:110~140degree
8. Material:Stainl steel+PC
9. Load: 7A energy-saving lamps, LED
10. Size:86 x 86 x 35mm



Human Body PIR Motion Detector Sensors Switch IR Infrared AC 110 - 240V 0

Human Body PIR Motion Detector Sensors Switch IR Infrared AC 110 - 240V 1

Human Body PIR Motion Detector Sensors Switch IR Infrared AC 110 - 240V 2
