Product Details:
|
| Input Voltage: | AC85-265V 50/60Hz | Load Power: | ≤ 40 Watt |
|---|---|---|---|
| Sensoring Angle: | 110° | Control Lasting Time: | 40-50 Seconds |
| Photocell Set: | ≤10 Lux Sunlight | Detection Distance: | 2-6 Meters |
| Installation Height: | ≤ 3.5 Meters | IP Grade: | IP22 |
| Size: | 35×ø27.5 Mm | Hole Drilling Size: | 20 Mm |
| Finish: | White | ||
| High Light: | PIR IP22 Motion Detector Sensors,IP22 Motion Detector Sensors,Human IP22 Motion Detector Sensors |
||

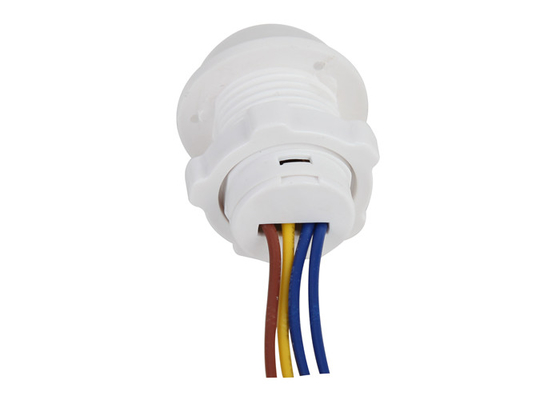

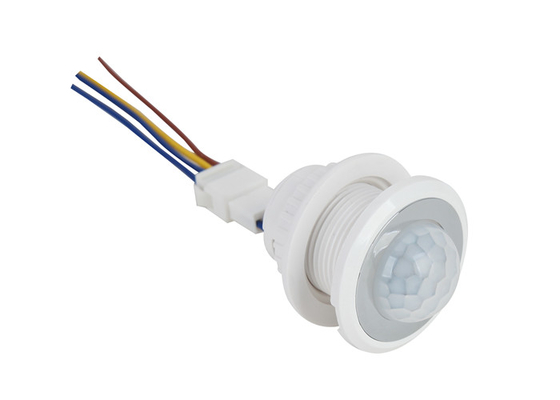

Human Motion PIR Sensor Switch for LED Ceiling Light, LED Down Light
Why human motion sensor is needed?
It’s estimated that 1.8 percent of adults experience amnesia in a given year.
They always forget to do something, for example, turn off lighting when leaving room, lose personal items or skip to-do-list.
When LED lighting is not turned off after people leave, it will waste power in vain and increase electric bill.
Human motion sensor switch is the best partner for LED ceiling light, LED down light especially in case of public illumination areas.
It will turn on LED lighting automatically when human motion is detected in sensing distance.
After visitors leave, it will control LED lighting to keep on lighting up and last 40 seconds.
Then LED lighting will be turned off without manual operation, which is absolutely hand free, save electric power and cut down electric bill.
Product Parameters:
| Product Model No.: MR-HW06S | ||||
| Input: AC85-265V 50/60Hz | ||||
| Power load: ≤40W | ||||
| Detection range: 2~6meters | ||||
| Detection angle: 110° | ||||
| Response time: 0.5 second | ||||
| Product color: white | ||||
| Installation method: built-in | ||||
| Hole drilling size: 20mm | ||||
| Material: Polycarbonate plastic | ||||
| Application: LED ceiling light, LED down light |
Feasures:
Small size, built in LED ceiling PC cover, not interfere with other electric components.
Sensitive probe distance upto 6 meters.
Easy assembly
Compatible with many indoor LED lightings.
Note:
Please note the MOQ (minimum order quantity) is 100 pieces, either we don't accept individual order.
When you need to place order, please make sure it is business order and buy 100 pieces at least.
Thanks a lot.
