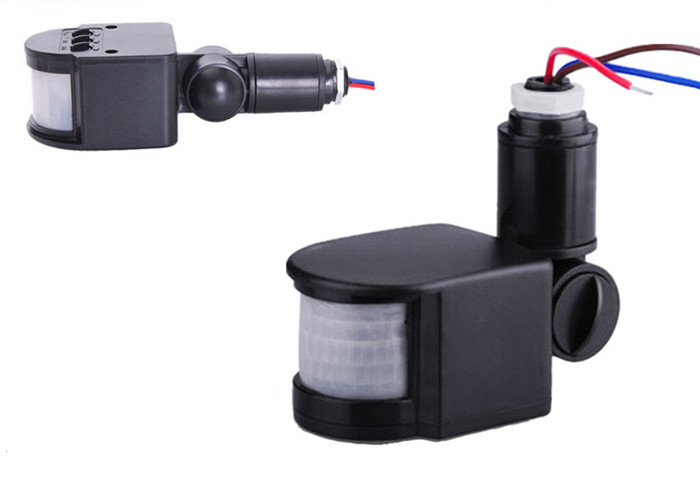

AC 220V Automatic IR Infrared Motion Sensor LED Light Switch Outdoor

I'm Online Chat Now

AC 220V Automatic IR Infrared Motion Sensor LED Light Switch Outdoor

AC 220V Automatic IR Infrared Motion Sensor LED Light Switch Outdoor
AC 220V Automatic IR Infrared Motion Sensor LED Light Switch Outdoor

Large Image :  AC 220V Automatic IR Infrared Motion Sensor LED Light Switch Outdoor

Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-GYHW110
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: USD 2.5-3.5 per piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000 pieces / day

AC 220V Automatic IR Infrared Motion Sensor LED Light Switch Outdoor

Description
Input Voltage: AC 110V-240V Rated Load: 100W
Lux Setting: 0-2000lux Svr Adjustable Product Size: Approx.45 (H) X 55(W) X 155(L)mm
High Light:

220V IR Infrared Motion Sensor

,

Outdoor IR Infrared Motion Sensor

,

Outdoor Automatic Motion Sensor Light Switch

LED Outdoor AC220V Infrared PIR Motion Sensor Detector Wall Light Switch



Product Introduction:

This product is a new type of energy-saving lighting switch, it adopts high sensitivity detector, integrate circuit and SMT, safe and practical.
1. Easy to install
3. Automatic, convenient, safe and practical.
4. Power and detection indication.
5. Motion sensor can identify day and night automatically.
6. Wide detection range: made up of up and down, left and right service field.

7. It utilizes human motion infrared rays as control signal sources, when one enters the detection field, it will start the controlled load at once.



Specifications:

1. Color: Black

2. Material: ABS

3. Working Rotation: 140°

4. Voltage: AC110V~240V(50Hz)

5. Standard: LVD, EMC, CE, RoHS

6. IP Rating: Indoor application IP44

7. LUX Setting: 0-2000lux adjustable

8. Induction lighting time: 5s~5min adjustable time

9. Detection distance: approx 12M, installation 1.5-2.5M High

10. Output: Maximum 1000W incandescent lamp, 100W fluorescent lamp, Exhaust fan 100W, Motor 100W, Electric bell 100W

11.Size: Approx.45 (H) x 55(W) x 155(L) mm
