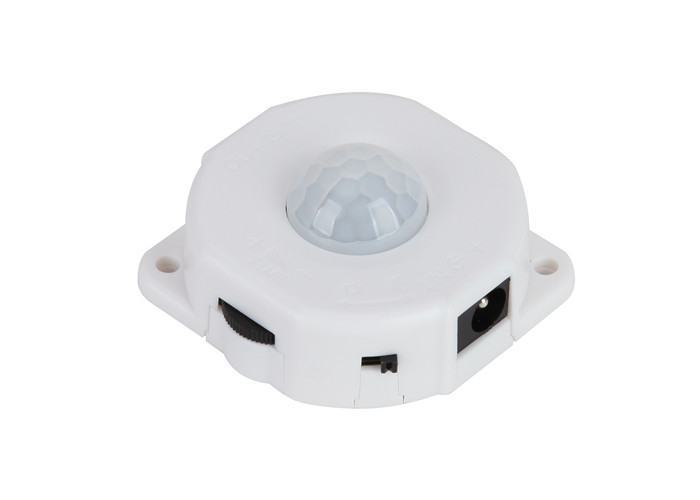

Human Body Infrared PIR Motion Presence Sensor Switch 220V IR ABS Plastic

I'm Online Chat Now

Human Body Infrared PIR Motion Presence Sensor Switch 220V IR ABS Plastic

Human Body Infrared PIR Motion Presence Sensor Switch 220V IR ABS Plastic
Human Body Infrared PIR Motion Presence Sensor Switch 220V IR ABS Plastic

Large Image :  Human Body Infrared PIR Motion Presence Sensor Switch 220V IR ABS Plastic

Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-SD317
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: USD 2.5-3.5 per piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 10,000 pieces / day

Human Body Infrared PIR Motion Presence Sensor Switch 220V IR ABS Plastic

Description
Material: ABS Plastic Color: White / Black
Input Voltage: AC100-265V Installation Way: Surface Mounted
High Light:

220V PIR Motion Presence Sensor

,

Human Body PIR Motion Presence Sensor

,

ABS Infrared Motion Sensor Switch

Long Distance 220V IR Detector Switch Infrared PIR Human Body Motion Detector Presence Sensor



Product Specifications:

Power Source: 110-130V/AC 220-240V/AC

Detection Range: 360°

Power Frequency: 50/60Hz

Detection Distance: 20m max(<24℃)

Ambient Light: <3-2000LUX (adjustable)

Working Temperature: -20~+40℃

Time Delay: Min.10sec±3sec

Working Humidity: <93%RH

Max.30min±2min

Power Consumption: approx 0.5W

Installation Height: 2.2-6m

Rated Load:110-130V/AC 220-240V/AC

Max Load Power: 1000W (incandescent lamp)

1000W(energy-saving lamp)



Lifetime and Warranty:

Lifetime: minimal 50,000 Hours

Warranty: 3 Years



Working Mode:

This IR sensor switch can identify day and night: The consumer can adjust working state according to different ambient light. It can work both in the daytime and at night when it is adjusted to the “sun” position (max). It can work in the ambient light less than 3 lux, when it is adjusted to the “3” position (min). As for the adjustment pattern, please refer to the testing pattern.

Time-Delay is added continually: When it receives the second induction signal within the first induction, it will restart to time from the moment.



Attention:

As the detector responds to changes in temperature, avoid the following situations:

1.Avoid setting the detector towards objects with highly reflective surfaces, such as mirrors etc.

2. Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc.

3. Avoid installing the detector towards objects that may move in the wind, such as curtains, tall plants etc.
