Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-CM145M
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: USD 2.5/Piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 10,000 pieces / day

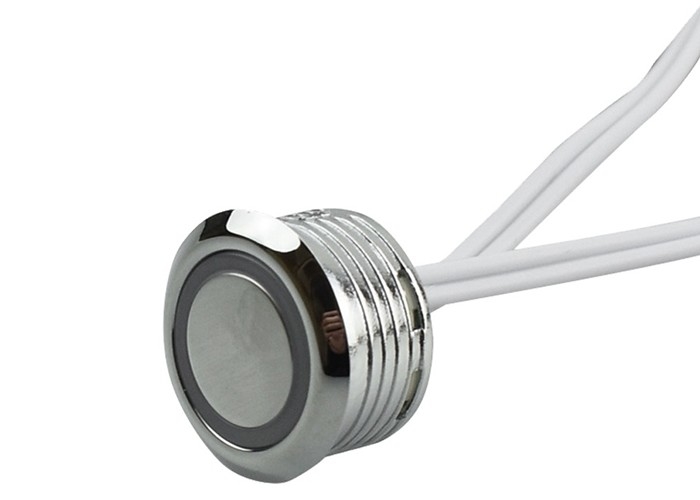

Home Light Dimmer Touch Sensor Switches Stepless DC 12V 24V

Description
Input Voltage: DC 12V / 24V Rated Load: 3A
Rated Power: 36 Watt Output Voltage: DC 12V / 24V
Cutout Size: 17mm Dimmable: Yes
High Light:

Dimmer Touch Sensor Switches

,

Stepless Touch Sensor Switches

,

24V Home Light Sensor Switch

Touch Switch Stepless Dimmer Switch DC 12V 24V for LED Home Lighting



Product Description:

Touch dimmer sensor: After correctly connected this sensor with your power supply and

LED lights, Touch sensor Switch On/Off and Stepless Dimming; Touch button to switch

on, touch again to switch off. Keep touch to dim light.



Notice:

1.This dimmer is only used for indoor and can't be installed in metal material
2. If the LED light is always on after the wire is connected, the switch cannot be controlled. The reasons are as follows:
A. The positive and negative poles are reversed;
B. The input and output are reversed;
C. The working voltage does not match


Solutions:
1. First determine whether the output voltage of the driver power supply is DC12V
2. Check whether the positive and negative poles are connected reversely. If the positive and negative poles are reversed, the blue indicator light on and the switch will not light up.
3. Check whether the input and output are connected reversely.



Home Light Dimmer Touch Sensor Switches Stepless DC 12V 24V 0

Home Light Dimmer Touch Sensor Switches Stepless DC 12V 24V 1
