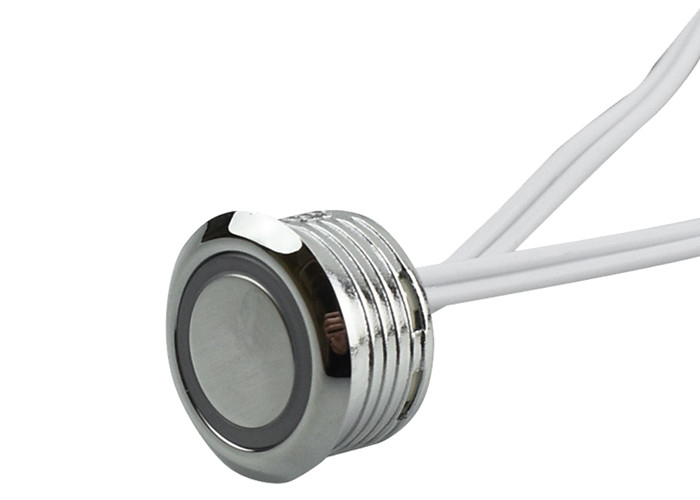

LED Dimmable Light Touch Sensor Switches 12V 3A For Kitchen

I'm Online Chat Now

LED Dimmable Light Touch Sensor Switches 12V 3A For Kitchen

LED Dimmable Light Touch Sensor Switches 12V 3A For Kitchen
LED Dimmable Light Touch Sensor Switches 12V 3A For Kitchen

Large Image :  LED Dimmable Light Touch Sensor Switches 12V 3A For Kitchen

Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-JKCM1701
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: USD 2.5/Piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000 pieces / day

LED Dimmable Light Touch Sensor Switches 12V 3A For Kitchen

Description
Input Voltage: DC12V-24V Output Voltage: DC12V-24V
Output Current: 3000mA Load Power: 36Watt
Size: 19*11mm
High Light:

12V Touch Sensor Switches

,

3A Touch Sensor Switches

,

Kitchen Dimmable Touch Light Switch

12V 3A Dimmable Touch Switch for LED Strip Light Kitchen Lighting



Product Specification:

Type touch dimmer
Valtage DC 12V
Output current 3A
Max Load 36W
Working Temperature -20℃-50℃
Mounting Hole Diameter 17mm
Head Diameter 19mm
Switch Height 11mm
Switch indicator Light Blue Ring
Connector Dupont connector(customized)
Cable length Input: 1500mm, Output: 180mm



Product Feasures:

1. This touch switch is only used for indoor and can't be installed in metal material.
2, If the LED light is always on after the wire is connected, the switch cannot be controlled.The reasons are as follows:
a. The positive and negative poles are reversed;
b. The input and output are reversed;
c. The working voltage does not match



LED Dimmable Light Touch Sensor Switches 12V 3A For Kitchen 0
