Product Details:
|
| Input Voltage: | DC 12V / 24V | Load Current: | 5000 MA |
|---|---|---|---|
| Rated Load: | 12V 60W / 24V 120W | Sensor Type: | Passive Infrared |
| High Light: | IR Auto Sensor Light Switch,60W Auto Sensor Light Switch,IR 12V Motion Detector Switch |
||

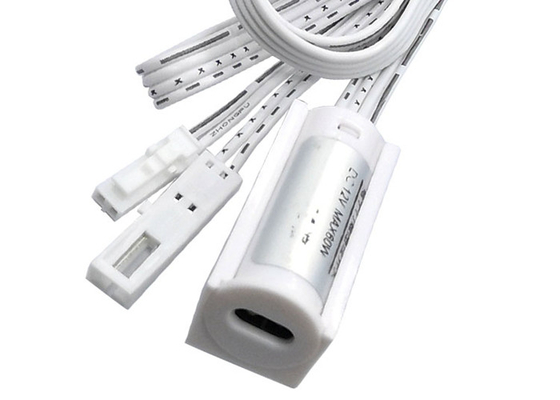

IR Door Controlled Sensor Detector Auto Switch for Wardrobe, Cabinet, Kitchen Light
Product Description:
Load power: 12V 60W / 24V 120W
Working voltage: DC12-24V 5A
Sensing angle: 110 degrees
Induction delay: 30 seconds
Induction distance: 1-3 meters
Appearance color: white
Parallel wire specifications: UL2468 20AWG*2
Switch cord length: 1.5 meter
Product function: When the cabinet door is opened, the LED light will be turned on immediately, and the lamp will turn off when the cabinet door is closed.
Application lamps: LED lights, wardrobe lights, cabinet lights, desk lights, etc.
Installation method: surface mounting with screw protection shell or recessed mounting with 10mm cutout hole.
Surface mounted size: 3.5*3.7cm
