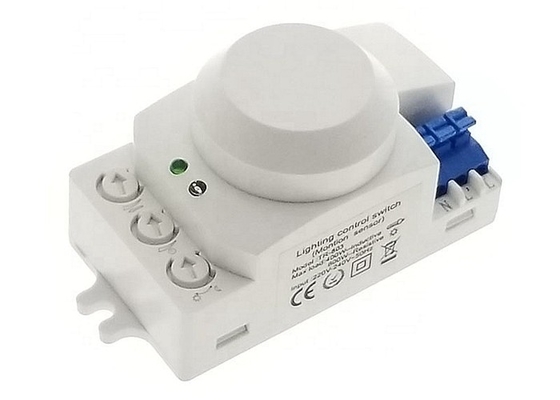

Automatic Light Control Microwave Motion Sensor Switch 5.8GHz Adjustable

I'm Online Chat Now

Automatic Light Control Microwave Motion Sensor Switch 5.8GHz Adjustable

Automatic Light Control Microwave Motion Sensor Switch 5.8GHz Adjustable
Automatic Light Control Microwave Motion Sensor Switch 5.8GHz Adjustable

Large Image :  Automatic Light Control Microwave Motion Sensor Switch 5.8GHz Adjustable

Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-LD992
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: USD 3.5 per piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000 pieces / day

Automatic Light Control Microwave Motion Sensor Switch 5.8GHz Adjustable

Description
Power Source: AC220-240V Rated Load: Rated Load: 1200W (incandescent Lamp) 300W (energy-saving Lamp)
HF System: 5.8GHz CW Radar, ISM Band Time-Delay: Min. 10sec±3sec Max. 12min±1min
Ambient Lux: 3-2000LUX (adjustable) Installation Height: 1.5 Meter-3.5 Meter
High Light:

Adjustable Microwave Motion Sensor Switch

,

5.8GHz Microwave Motion Sensor Switch

,

5.8GHz Automatic Light Control Sensor

5.8GHz Automatic ON OFF Light Control Adjustable Microwave Motion Sensor Switch



Product Specifications:

Detection Range 360°
Power Source 220V/AC-240V/AC
Power Frequency 50/60Hz
HF System 5.8GHz CW radar, ISM band
Time-Delay Min. 10sec±3sec Max.12min±1min
Power Consumption 0.9W
Ambient Light 3-2000LUX (adjustable)

Installation

Height

1.5m~3.5m



Product Introduction:

The product is a new saving-energy switch; it adopts microwave sensor mould with high-frequency electro-magnetic wave (5.8GHz), integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its using is very wide. Detection is possible through doors, panes of glass or thin walls.



Automatic Light Control Microwave Motion Sensor Switch 5.8GHz Adjustable 0

Automatic Light Control Microwave Motion Sensor Switch 5.8GHz Adjustable 1

Automatic Light Control Microwave Motion Sensor Switch 5.8GHz Adjustable 2
