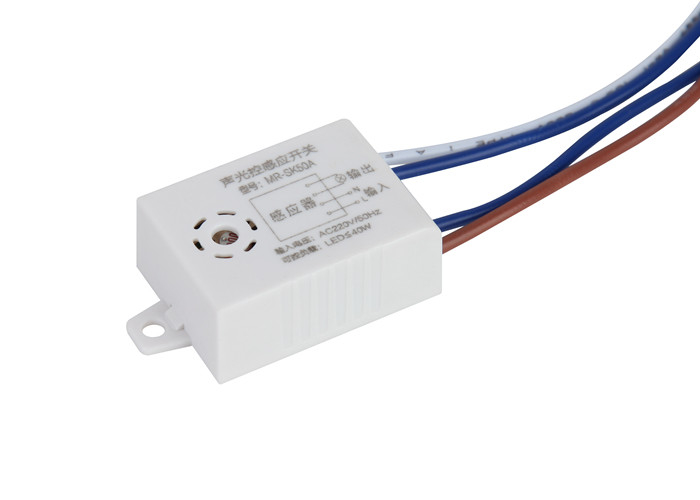

40W Acoustic Photocell Sensor Switch Activated For LED Lighting

I'm Online Chat Now

40W Acoustic Photocell Sensor Switch Activated For LED Lighting

40W Acoustic Photocell Sensor Switch Activated For LED Lighting
40W Acoustic Photocell Sensor Switch Activated For LED Lighting

Large Image :  40W Acoustic Photocell Sensor Switch Activated For LED Lighting

Product Details:
Place of Origin: China
Brand Name: Microwave Radar
Certification: CE, RoHS
Model Number: MR-SK50A
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: USD 2.5/Piece
Packaging Details: Paper box and carton.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 10,000 pieces / day

40W Acoustic Photocell Sensor Switch Activated For LED Lighting

Description
Input Voltage: AC180-265V Load Power: ≤40Watt
Induction Noise: 50db Time Delay: 45 Seconds
Photosensitive Set: ≤10 Lux Product Size: 43*28*16mm
High Light:

Activated Acoustic Photocell Sensor Switch

,

Acoustic Photocell Sensor Switch

,

40W Acoustic Photocell Sensor Switch

40W Acoustic and Photocell Activated Sensor for LED Lighting



Product Introduction:

This is an electric component for LED smart lighting.

It will be activated by ambient acoustic sound or enviromental illumination lux limit.

This sensor is widely used for public area or building where sound is loud and frequent.

The product can turn on or turn off light automatically according to ambient-light. Ambient temperature and humidity can’t affect it. It is not only convenient but also practical; it can control the load working only at night. It is used for road light, garden light etc.



Installation Instruction:

Switch off the power and connect the wire as per the connection-wire diagram.

Please install the item in the correct orientation with the metal bracket and according to the correct installation place install the item with the enclosed inflated screws.



Test:

Switch on the power.

When you test in daytime. You should cover a black opaque cloth on the product.

When the cloth mantles the detection window of the photocell, the ambient light of the photocell is dark, the lamp will be on.

When you take off this cloth, the lamp will be off automatically.
